Tombstone Example tomb-G for the Surface Evolver

[Click for the tomb-GG.fe datafile in a second window.]

This model is the same upright tombstone as tomb-G, but with the contact facets replaced by line integrals around the contact lines.

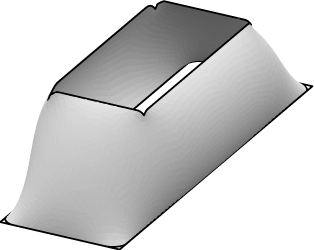

The evolved solder surface.

Notable features:

• The main new feature is line integrals on the z+ face for energy and content. I use dy slicing, with a slice running along the z+ face AND down the x+ face.
